Jet JWL-1840EVS 18″ x 40″ Electronic Variable Speed Wood Lathe

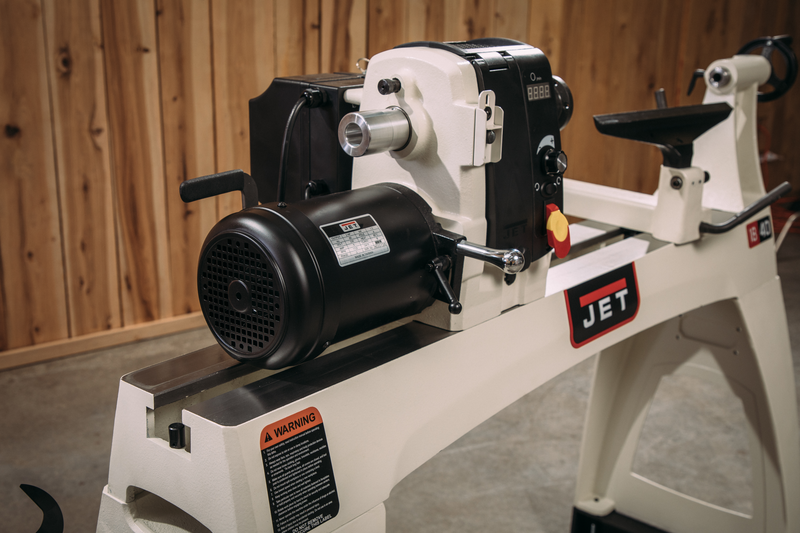

Jet JWL-1840EVS 18" x 40" Electronic Variable Speed Wood Lathe

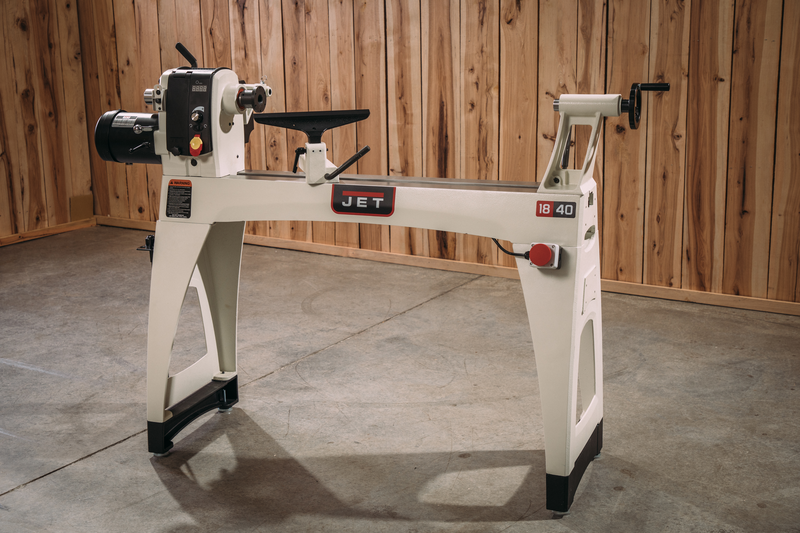

Jet JWL-1840EVS 18" x 40" Electronic Variable Speed Wood Lathe - Image 2

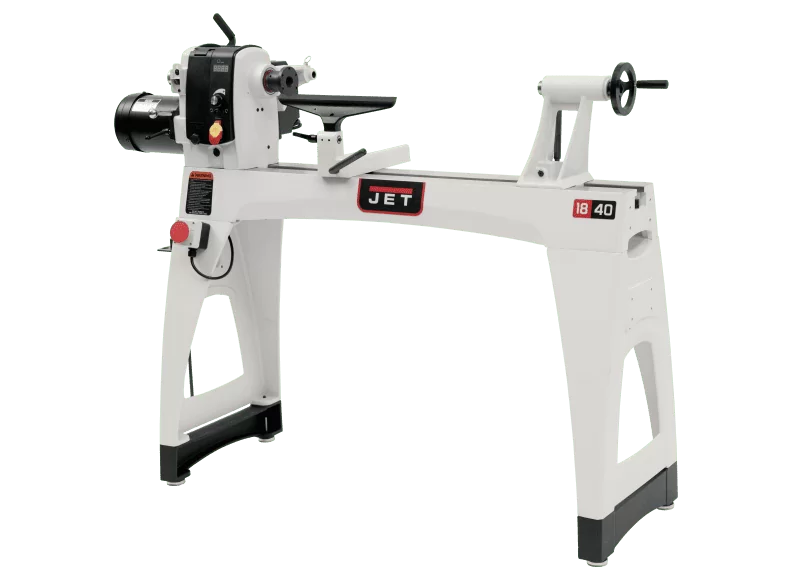

Jet JWL-1840EVS 18" x 40" Electronic Variable Speed Wood Lathe - Image 3
Jet JWL-1840EVS 18" x 40" Electronic Variable Speed Wood Lathe - Image 4
Jet JWL-1840EVS 18" x 40" Electronic Variable Speed Wood Lathe - Image 5

Jet JWL-1840EVS 18″ x 40″ Electronic Variable Speed Wood Lathe

$3,399.99

In stock!

Introducing the 1840EVS woodworking lathe from JET. Designed to be as versatile as you are in the shop this lathe features a headstock that slides the full length of the bed. The included four-inch cast iron risers allow you to easily choose the working height that maximizes your comfort.

SKU: JT9-719600 Categories: , , Tags: , , ,

• Headstock slides for maximum versatility
• Extended spindle nose houses dual headstock spindle bearings
• Four inch cast iron risers allow user to adjust height of lathe for maximum comfort
• Improved tailstock quill locking mechanism incorporates an anti-rotation key
• Tailstock features Acme threads for smooth and durable movement

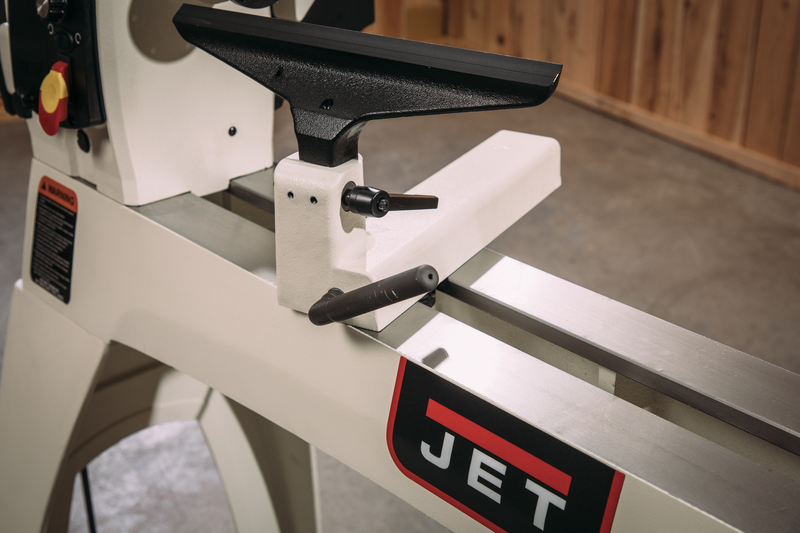

• Banjo uses non-marring, positive locking wedge system to securely hold tool post
• Tool post locking mechanism designed for year of consistent strength
• Spindle lock latch frees up both hands

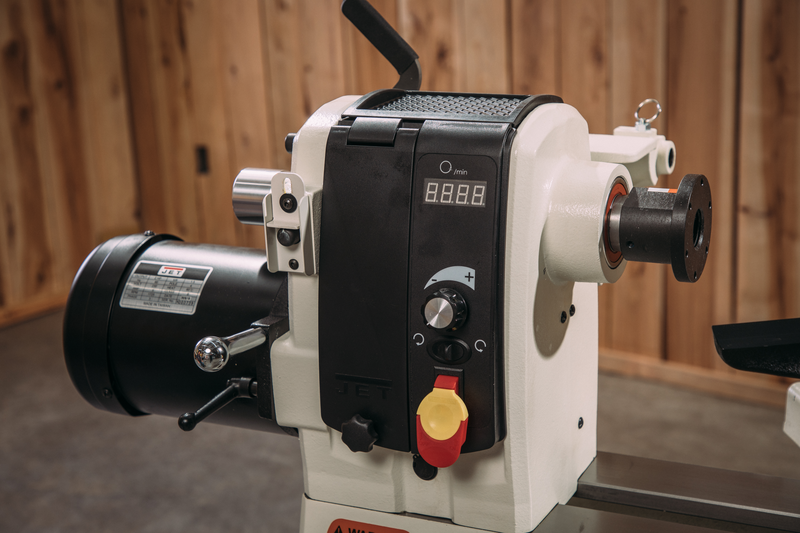

• Electronic infinitely variable speed from 40 – 3200 RPM
• 36 integrated indexing positions

Machine Specs

Swing Over Bed (In.) 18-1/2
Bed Gap (In.) 1-3/4
Swing Over Tool Rest Base (In.) 14-1/4
Distance Between Centers (In.) 40
Headstock Movement Slide
Spindle Bore (In.) 5/8
Tailstock Bore (In.) 3/8
Spindle Taper MT2
Quill Taper MT2
Quill Travel (In.) 4-1/4
Spindle Thread (In./TPI) 1-1/4″/8 TPI
Spindle Speeds High 120-3200/Low 40-1200
Speed Range 40-3200
Number of Indexing Positions 36
Centerline of Spindle to Floor (In.) 39-1/4; 43-1/4 w/risers
Bed Construction Cast Iron
Motor Power (HP) 2
Motor Phase (PH) 3
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Wiring Remarks 230v, 1ph input only
Motor Amps 5
Recommended Circuit Size (Amps.) 20
Assembled Machine Dimensions (In.) 73 x 52-1/2 x 20
