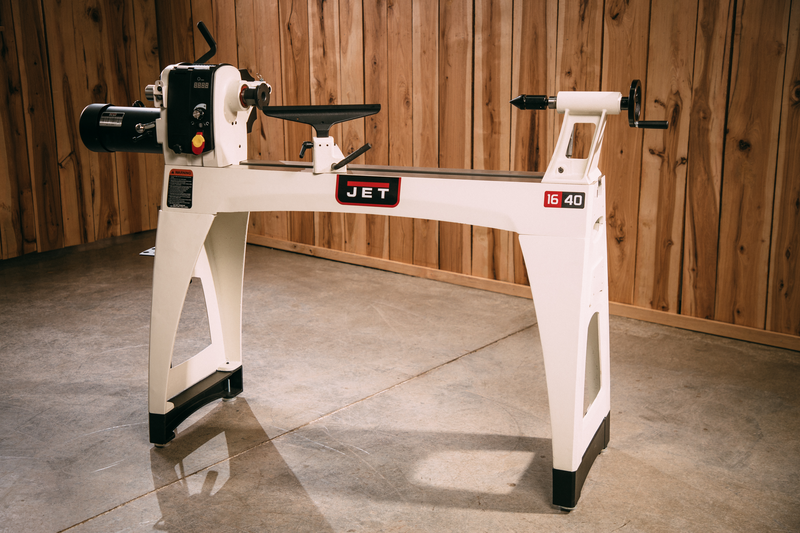

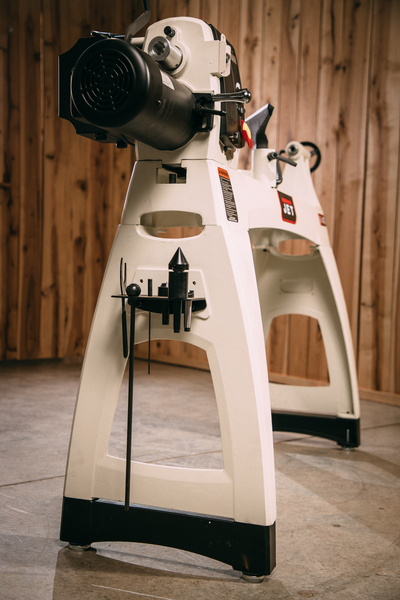

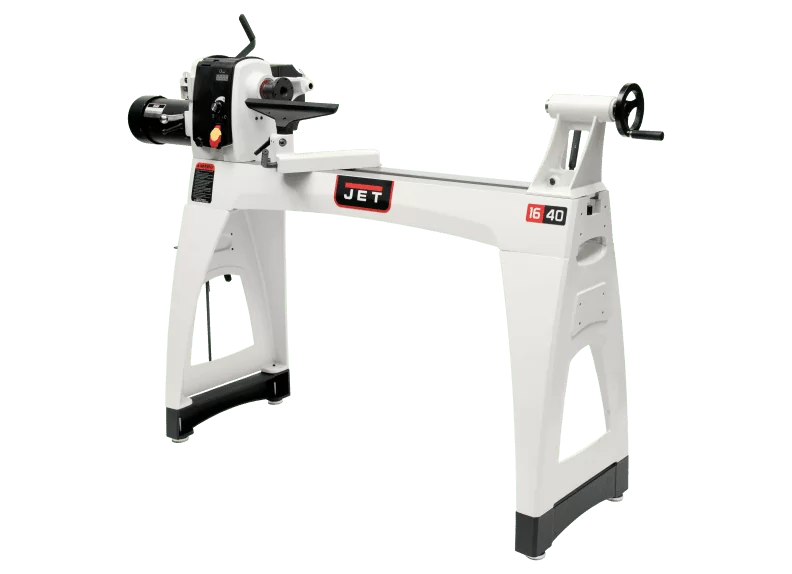

Jet JWL-1640EVS 16″ x 40″ Electronic Variable Speed Wood Lathe

Jet JWL-1640EVS 16″ x 40″ Electronic Variable Speed Wood Lathe

$2,999.99

In stock!

The new JET® 16” x 40” Electronic Variable Speed Woodworking Lathe is loaded with cutting-edge features that distinguish it from others in its class. Included is a sliding headstock, electronic infinitely variable speed from 40 – 3200 RPM, and a newly designed headstock locking handle.

SKU: JT9-719500 Categories: , , Tags: , , ,

• Headstock slides for maximum versatility
• Extended spindle nose houses dual headstock spindle bearings
• Improved tailstock quill locking mechanism incorporates an anti-rotation key
• Tailstock features Acme threads for smooth and durable movement
• Banjo uses non-marring, positive locking wedge system to securely hold tool post
• Tool post locking mechanism designed for year of consistent strength
• Spindle lock latch frees up both hands

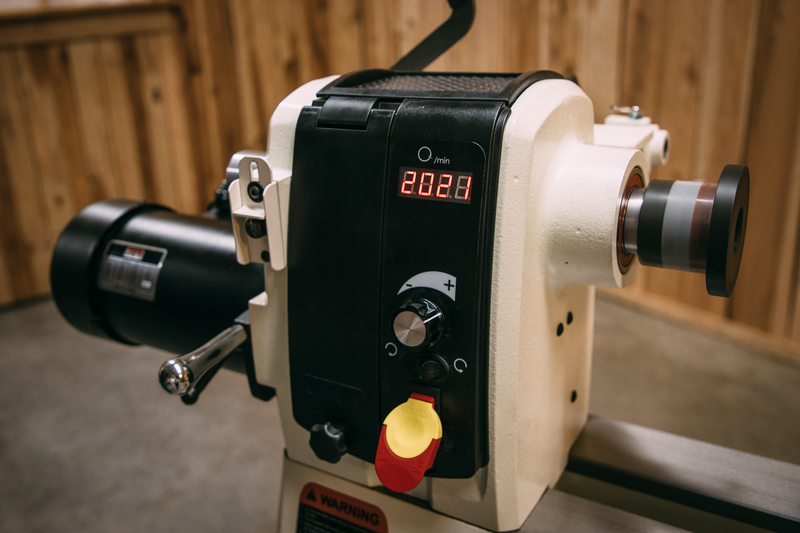

• Electronic infinitely variable speed from 40 – 3200 RPM
• 36 integrated indexing positions

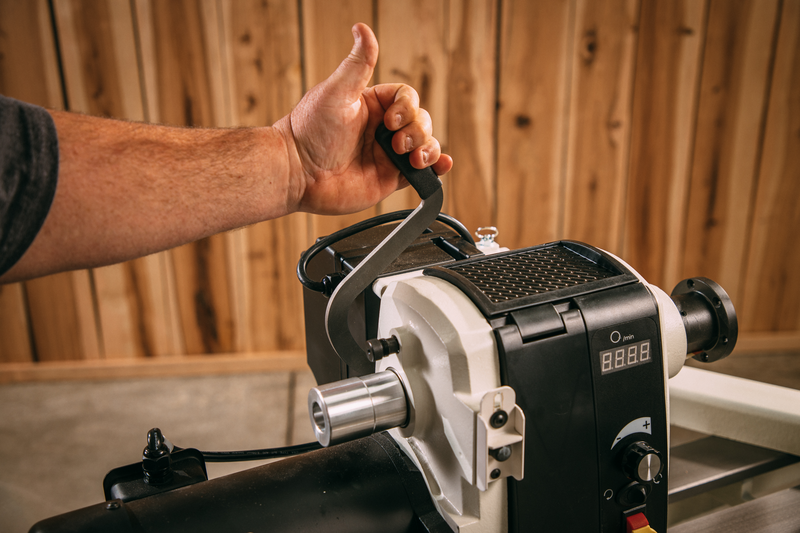

• Newly designed headstock locking handle accessible from front of lathe

Machine Specs

Swing Over Bed (In.) 16-1/2
Bed Gap (In.) 1-3/4
Swing Over Tool Rest Base (In.) 12-7/8
Distance Between Centers (In.) 40
Headstock Movement Slide
Spindle Bore (In.) 5/8
Tailstock Bore (In.) 3/8
Spindle Taper MT2
Quill Taper MT2
Quill Travel (In.) 4-1/4
Spindle Thread (In./TPI) 1-1/4″/8 TPI
Spindle Speeds High 120-3200/Low 40-1200
Speed Range 40-3200
Number of Indexing Positions 36
Centerline of Spindle to Floor (In.) 44-1/2
Outboard Turning Yes
Bed Construction Cast Iron
Motor Power (HP) 1-1/2
Motor Phase (PH) 3
Motor Voltage (V.) 230
Prewired Voltage (V.) 115 Input Only
Wiring Remarks 115v input only
Motor Amps 4.6
Recommended Circuit Size (Amps.) 20
Assembled Machine Dimensions (In.) 73 x 52-1/2 x 20
