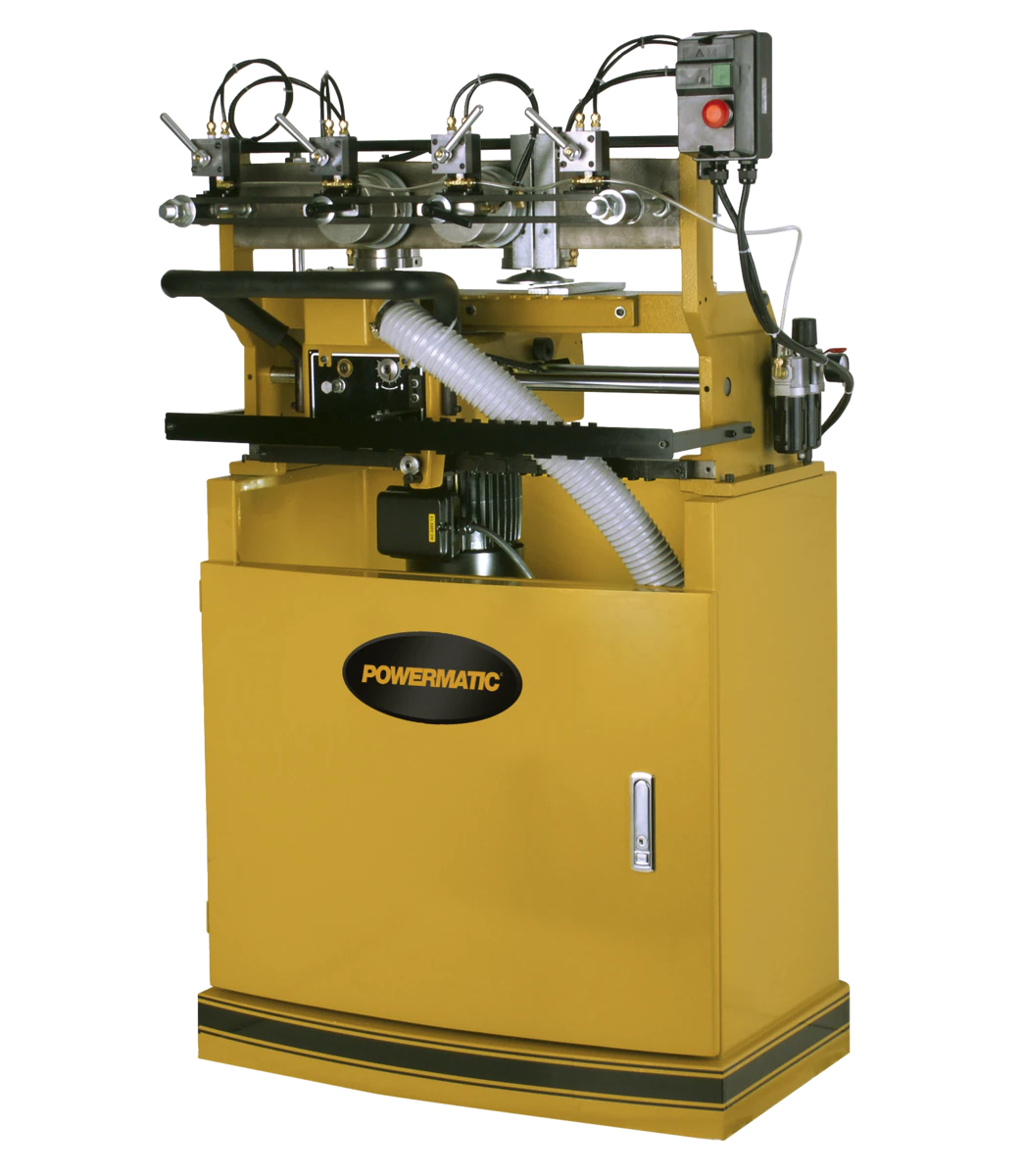

DT65 Dovetailer, 1HP, 1PH, 230V, Pneumatic Clamping

DT65 Dovetailer, 1HP, 1PH, 230V, Pneumatic Clamping

$7,999.99

In stock!

The POWERMATIC® DT65 Single Spindle Dovetailer gives quality to the most popular joints of drawer construction. It provides an affordable way to produce cleanly cut, professional dovetails that will enhance your products. The DT65 is complete with 1HP 230V 1 phase motor, pneumatic clamping, magnetic starter, carbide tipped cutter, and a four-sided template that produces dovetails on 1″, 1-1/2″, 2″, and 2-1/2″ centerlines. The use of different dovetail centerlines gives a unique custom appearance.

SKU: PM9-1791305 Categories: , Tags: , , , , , , , , ,

• Pneumatic clamping provides quick locking and unlocking of the work piece
• Four dovetail centerlines at 1″, 1-1/2″, 2″ and 2-1/2″ create a custom appearance
• Eccentric spindle collet for resharpened cutters
• The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
• Visual stylus and template aid in guiding the carriage
• Spring loaded carriage makes for smooth, effortless dovetail cutting
• Material stops provide convenient positioning of the workpiece
• Cast iron and steel construction for added stability and durability
• Cutter height of 3/16″ to 3/4″ accommodates different cutting depths and board thicknesses
• Extra large soft grip handle provides positive control and comfort

Machine Specs

Style (Type) Pneumatic
Number of Dovetail Center Lines 4
Minimum Work Piece Size (L x W)(In.) 7-7/8 x 2-3/8
Maximum Work Piece Size (In.) 59 x 16-1/2
Minimum Dovetail Height (In.) 3/16
Maximum Dovetail Height (In.) 3/4
Minimum Front Thickness (In.) 9/32
Maximum Front Thickness (In.) 2-3/8
Minimum Side Thickness (In.) 3/8
Maximum Side Thickness (In.) 1-3/16
Center to Center Dovetail Spacing (In.) 1, 1-1/2, 2, 2-1/2
Number of Spindles 1
Spindle Speed (RPM) 18,500
Table Height From Floor (In.) 45
Dust Collection Minimum CFM Required (CFM) 500
Dust Port Outside Diameter (In.) 2-1/2
Dust Collection Minimum CFM Required (CFM) 400
Motor Power (HP) 1
Motor Phase 1
Motor Voltage (V.) 230 Only
Prewired Voltage (V.) 230
