Denray’s Automated Cartridge Filter Cleaner

Denray’s Automated Cartridge Filter Cleaner

$10,710.00

In stock!

By using three different types of cleaning; vibration, air, and rubber fingers. We are able to provide a deeper clean than ever before!

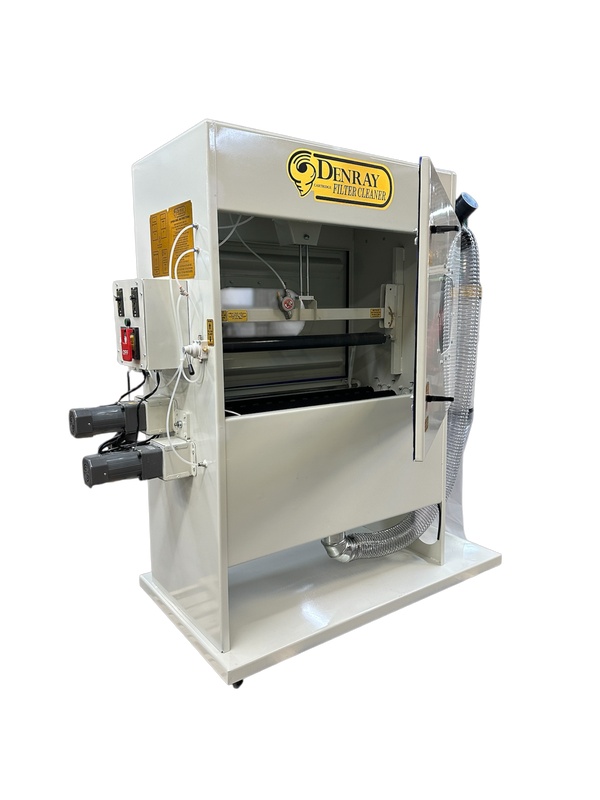

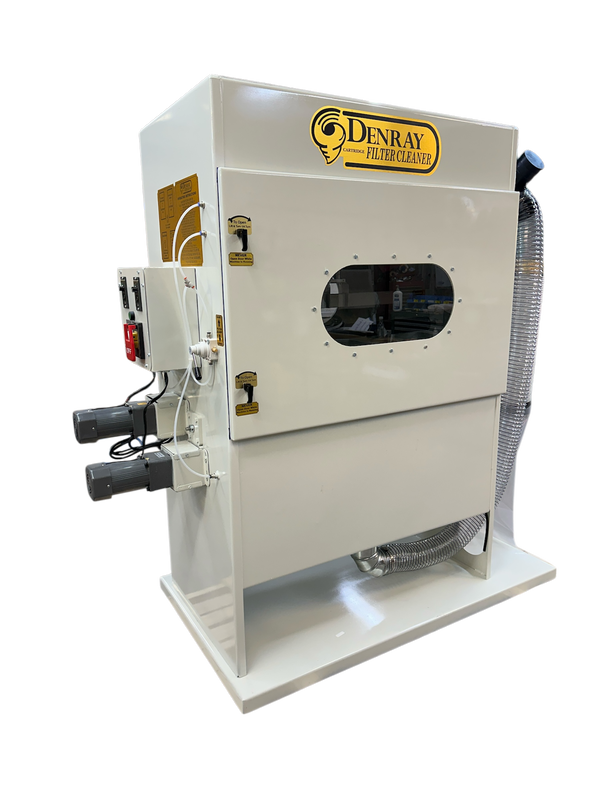

You simply place your cartridge filter inside the unit and turn it on. The cleaning process will start, rotating the filter during this automated process. The machine will run until someone powers it off. Each filter cleaning time may vary based on the amount of dirt in the filter. The average cleaning time should be 3-5 minutes per filter but will have to be determined by the operator.

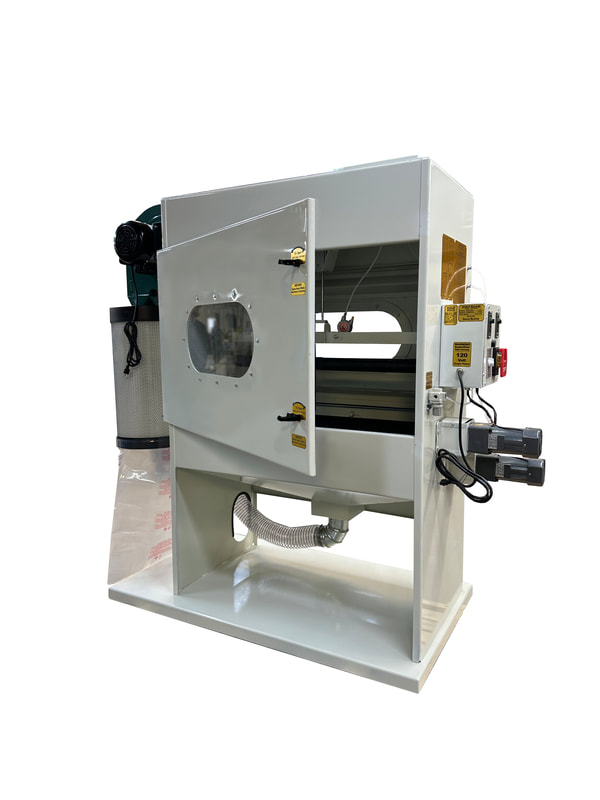

Once you have cleaned several filters, open the backside door, and use the provided paddle to help push the remnant dust towards the dust collection opening. This will allow the dust to be captured in the dust collection bag on the side of the machine for easy disposal.



Standard Features

  • The Cartridge Filter Cleaner is 120 volts
  • Requires compressed air supply of 100-140 psi

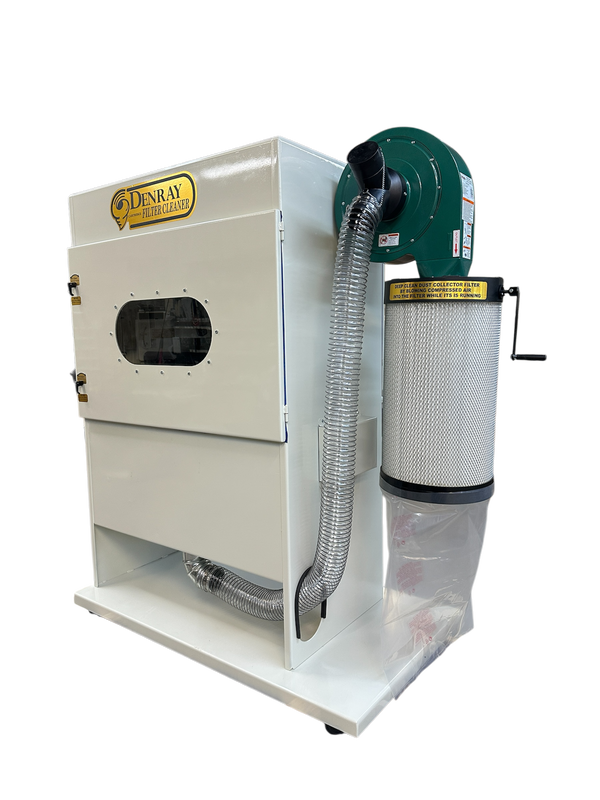

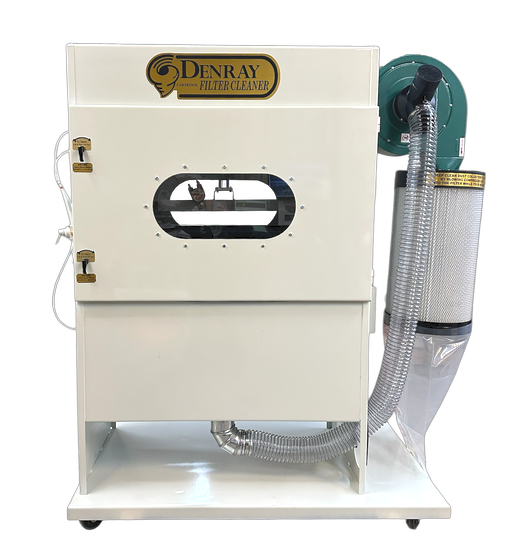

  • The unit comes equipped with a 1.5 hp dust collector to capture the airborne dust created during the cleaning process [1250 CFM Airflow Capacity]
  • Casters

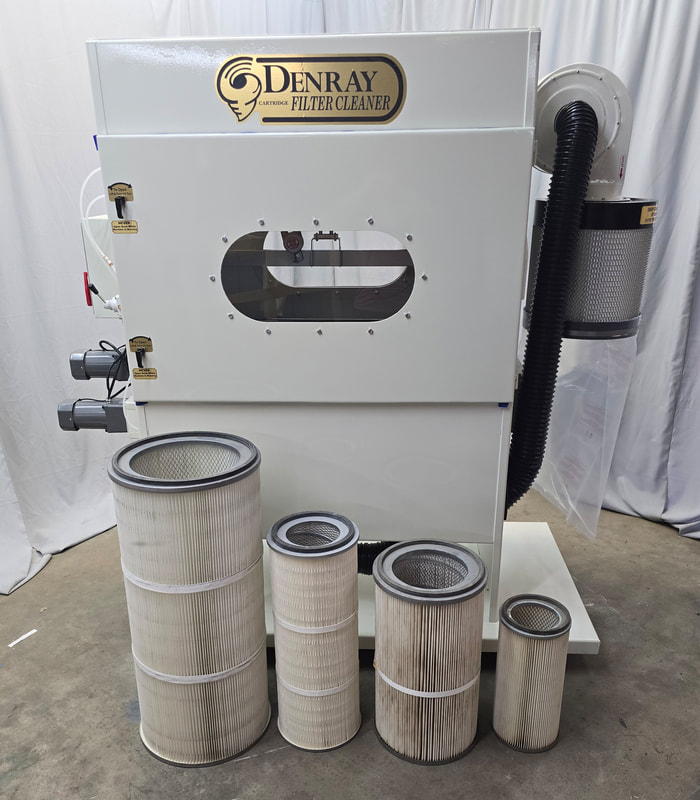

Filter Dimensions that can be cleaned:

  • 6” min. – 20” max. in diameter
  • 6” min. – 36” max. in length

Overall Machine Dimensions (approx.):

  • 82” wide X 34” deep X 78.25” tall
  • 725 lbs.

Please note the dust collector on the side of the machine will need to be emptied as the dust collection bag fills up. There is also a  12″ x 12″ x 1″ filter  on top of the unit that will need to be replaced as it fills up with dust.
