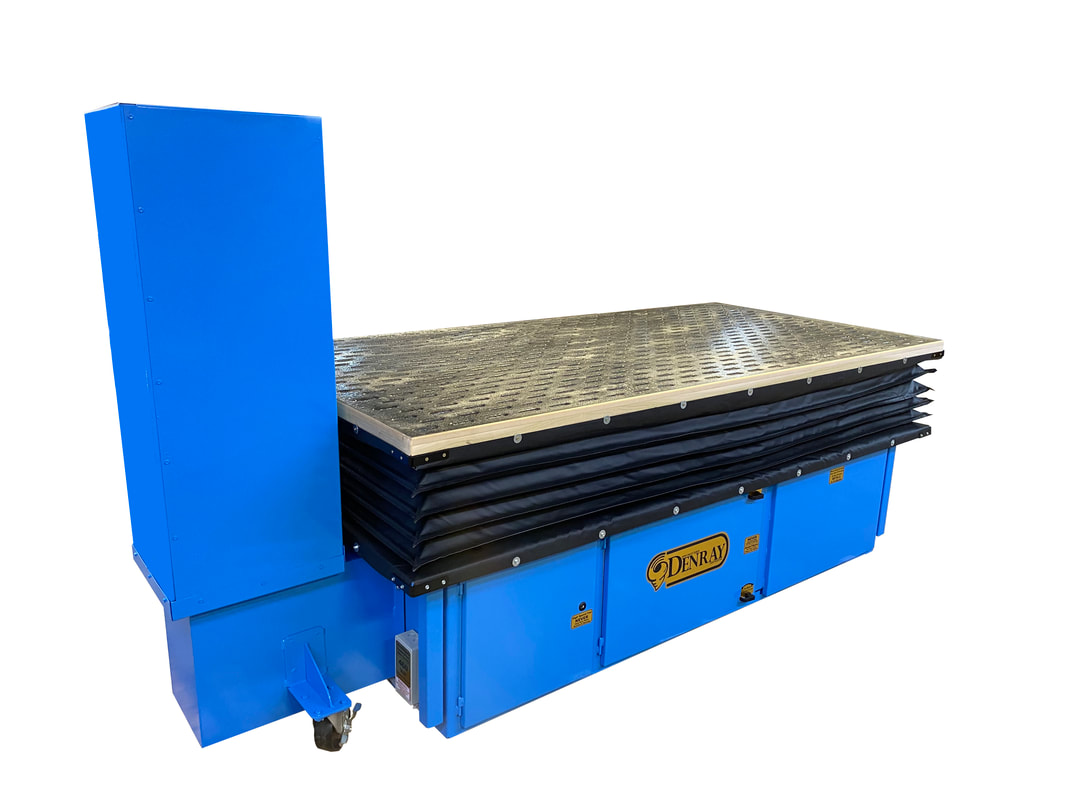

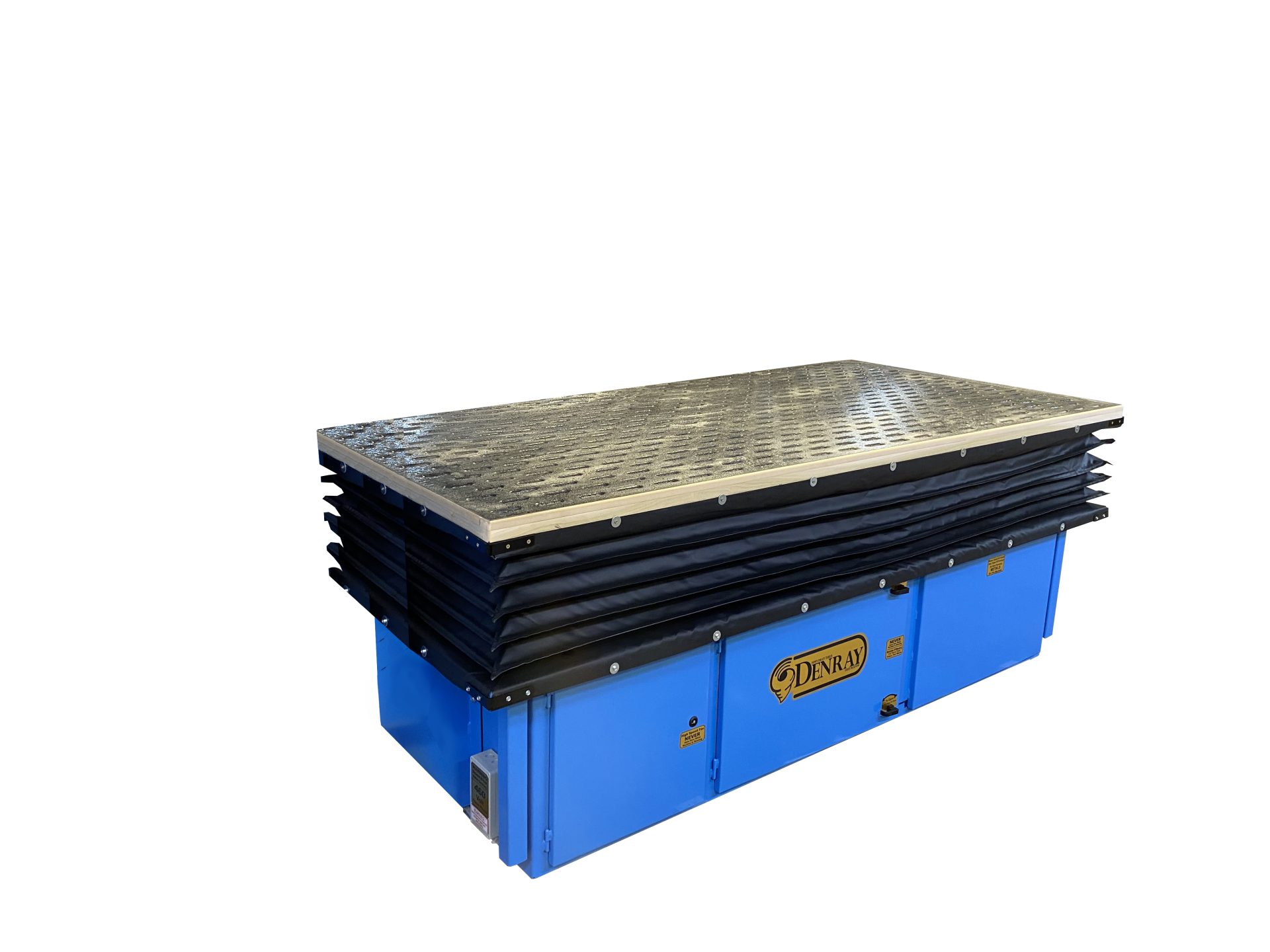

Denray 4896LP (low profile)Downdraft Table

Denray 4896LP (low profile)Downdraft Table

$19,330.00

In stock!

This model is great for medium sized jobs, designed to reach a low height of 28″ all the way through a 40″ high height. This table can be used for plastics, woods and finishing materials. The 4896LP comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with rubber coated top, and the Denray “Jet Pulse” push-button cleaning system.
Cartridge Filtration

Denray Machine’s cartridge filter systems are one of the best on the market. Our tables come with 80/20 cartridge filters, which clean with a 99.95% capture rate at .5 micron. Denray’s cartridge filtration tables come with “Jet Pulse” pushbutton cleaning. This line comes in various dimensions to accommodate any size job.



  • 48″ x 96″
  • ​28″ – 40″ ADJUSTABLE HEIGHT
  • 1050 LBS
  • 5 HP MOTOR
  • ​18″ FAN
  • 4800 CFM
  • ​82 DECIBELS SOUND LEVEL



PHASE/VOLTAGE OPTIONS
SINGLE-PHASE
  • 115 VOLTAGE (18.8 AMPS)
  • 220 VOLTAGE (9.4 AMPS)
THREE-PHASE
  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.4 AMPS)

Additional Options

(to order request a quote via our contact us page)

  • Explosion Proof Motor (3 Phase only)
  • Casters
  • Auto-timer
  • Muffler (reduces sound level 10-12 dbs.)
  • 100% Spunbond Polyester Filters
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • ​HDPE Plastic Tabletop
  • Larger Motor/Fan Upgrade
