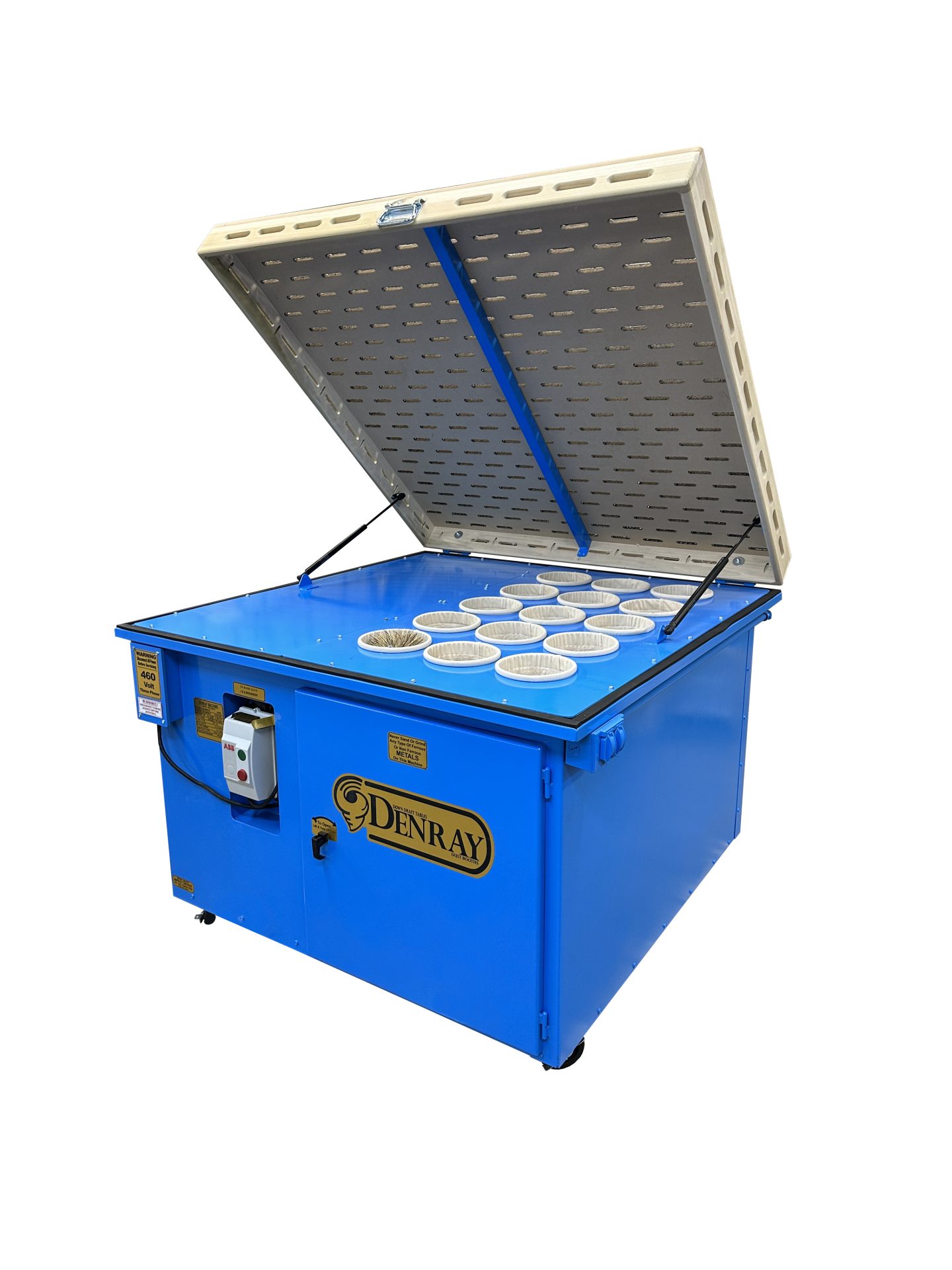

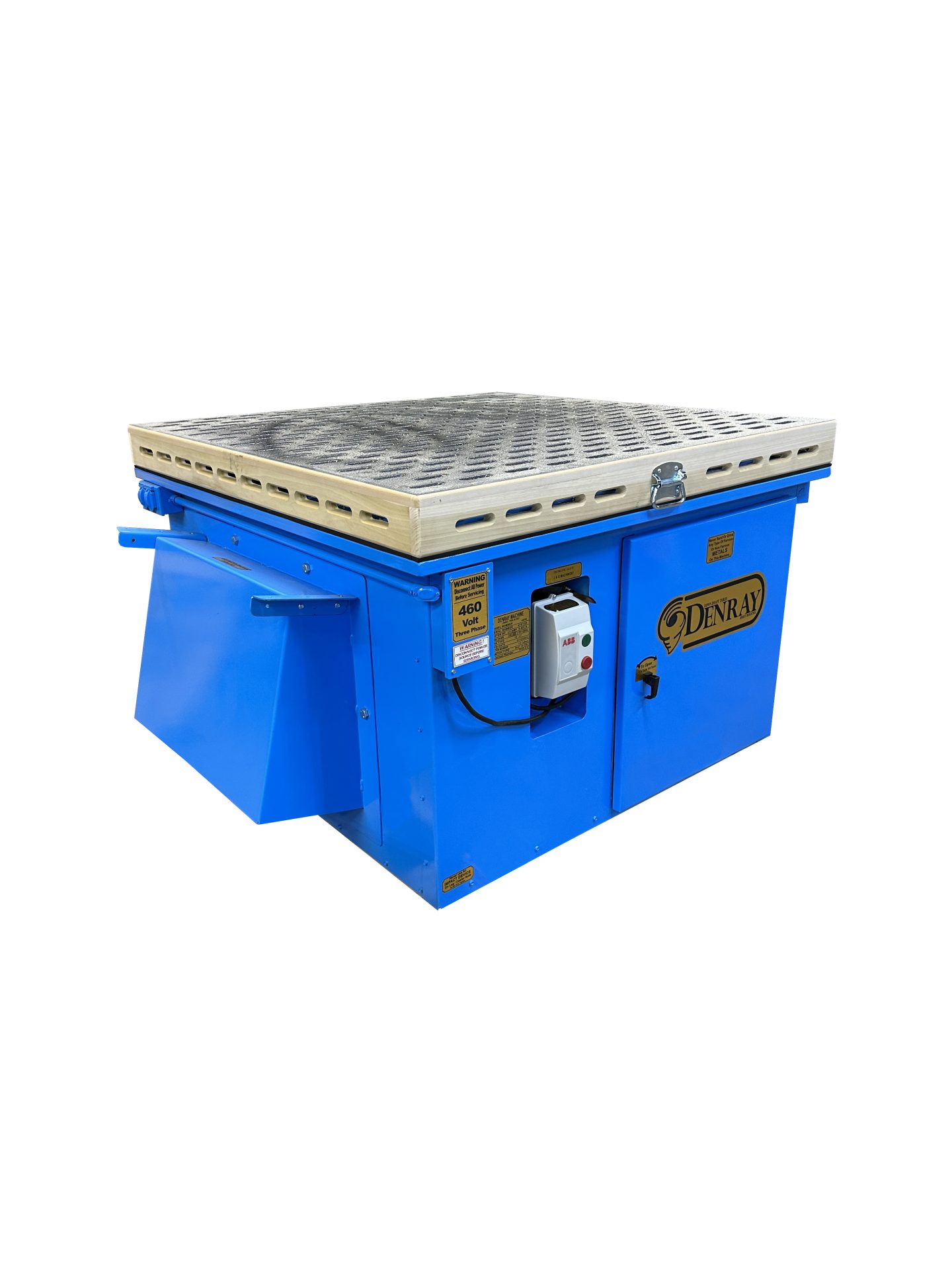

Denray 4800 Downdraft Table

Denray 4800 Downdraft Table

$8,455.00

In stock!

This model is great for medium sized jobs and is ideal for wood dust. The 4800 model comes with tube filtration which cleans with a 99% capture rate at 1 micron, making this model suitable for all wood dust applications. This model also comes standard with a filter brush/handle for manually cleaning the filters, casters and a rubber coated top.
Tube Filtration

Tube filters are great for wood applications and fine sanding dust.  Life expectancy of the tube filters is between 1-2 years with average use.  The dust is captured inside the tube and falls from the filters into the dust drawer below, when the machine is turned off.  A soft bristled brush (furnished with all tube filtration models) is used to run inside the filters, offering a deep cleaning procedure for the filters if needed.  The tube filters clean at a 99% capture rate at 1 micron, creating a much superior filtration than any pleated filters.

  • 48″ x 48″
  • 36″ HEIGHT
  • 580 LBS
  • 2 HP MOTOR
  • 16.5″ FAN
  • ​3400 CFM
  • ​77 DECIBELS SOUND LEVEL
  • 15 TUBE FILTERS
  • CASTERS
  • ​3 RECEPTACLES
PHASE/VOLTAGE OPTIONS
SINGLE-PHASE
  • 115 VOLTAGE (18.8 AMPS)
  • 220 VOLTAGE (9.4 AMPS)
THREE-PHASE
  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.4 AMPS)

Additional Options

(to order request a quote via our contact us page)

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Three-sided Hinged Safety Shield
  • HDPE Plastic Tabletop
  • ​Larger Motor/Fan Upgrade
