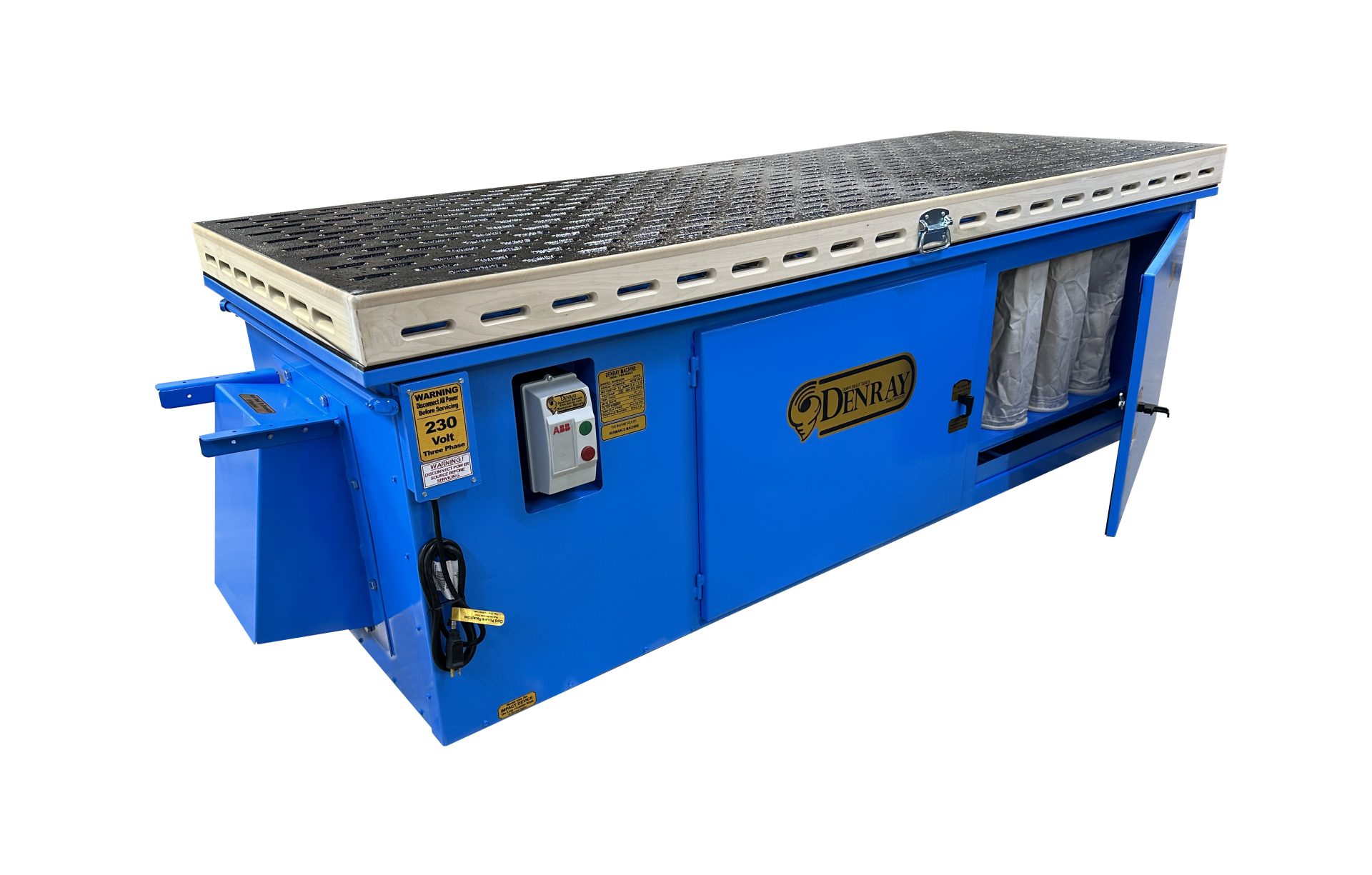

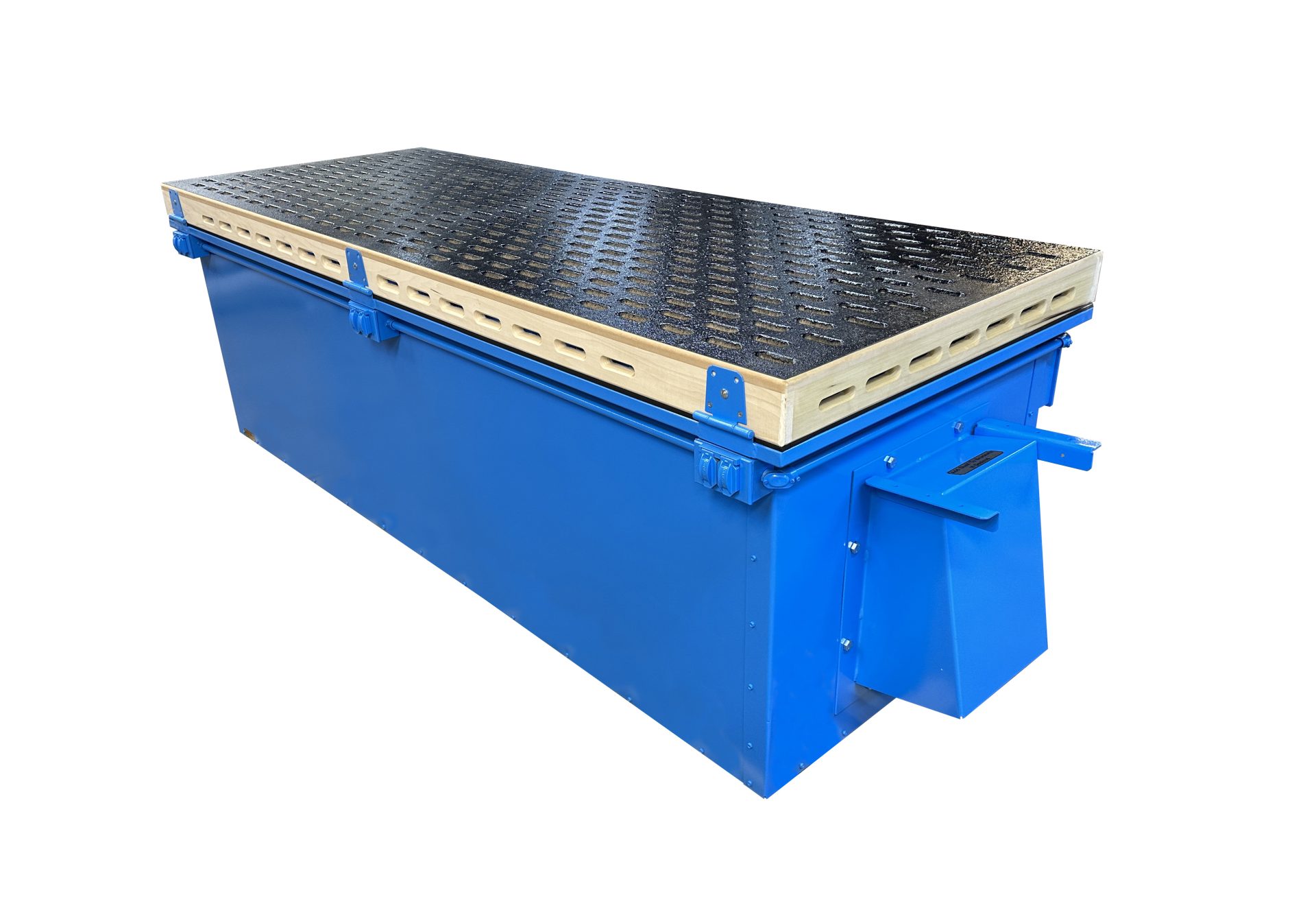

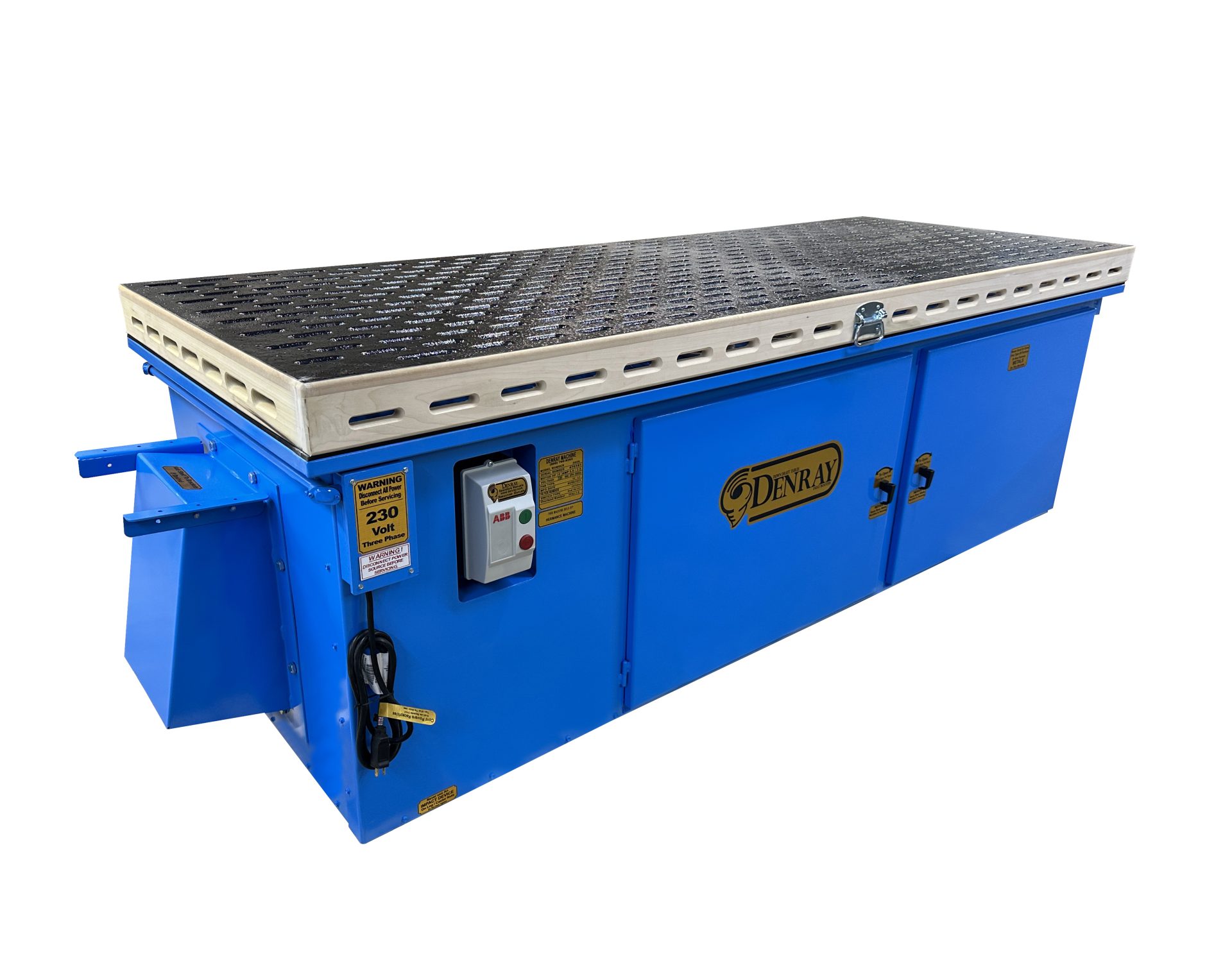

Denray 3696 Downdraft Table

Denray 3696 Downdraft Table

$9,920.00

In stock!

This model is great for medium sized jobs and is ideal for wood dust. The 3696 model comes with tube filtration which cleans with a 99% capture rate at 1 micron, making this model suitable for all wood applications. This model also comes standard with filter cleaner brush/handle, casters, and a rubber coated top.

Tube Filtration

Tube filters are great for wood applications and fine sanding dust.  Life expectancy of the tube filters is between 1-2 years with average use.  The dust is captured inside the tube and falls from the filters into the dust drawer below, when the machine is turned off.  A soft bristled brush (furnished with all tube filtration models) is used to run inside the filters, offering a deep cleaning procedure for the filters if needed.  The tube filters clean at a 99% capture rate at 1 micron, creating a much superior filtration than any pleated filters.


Additional options and add ons
(*to order submit a request via our contact us page*)
  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Three-sided Hinged Safety Shield
  • HDPE plastic tabletop
  • Larger Motor/Fan Upgrade
  • 36″ x 96″
  • 36″ HEIGHT
  • ​750 LBS
  • 2 HP MOTOR
  • 16.5″ FAN
  • ​3800 CFM
  • ​78 DECIBELS SOUND LEVEL
  • 24 TUBE FILTERS
  • CASTERS
  • ​4 RECEPTACLES
Voltage Options
SINGLE-PHASE
  • 115 VOLTAGE (18.8 AMPS)
  • 220 VOLTAGE (9.4 AMPS)
THREE-PHASE
  • 230 VOLTAGE (5.8 AMPS)
  • 460 VOLTAGE (2.9 AMPS)
  • 575 VOLTAGE (2.4 AMPS)
