Jet DELUXE XACTA® SAW 5HP, 1Ph, 50″ RIP

$3,849.99

In stock!

If you’ve ever wondered about what a table saw can really do, look no further. Introducing the new JET® 10″ DELUXE XACTA® SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The DELUXE XACTA® SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26″ x 30″ wings and deeper table gives you even more cast iron to work on. A built-in 12.5″ x 18″ x 4 ” storage drawer sealed from the cabinet keeps your necessities within arms reach, also includes an on-board fence and miter gauge storage.

SKU: JT9-708677PK Categories: , , Tags: , , , , , , , , , ,

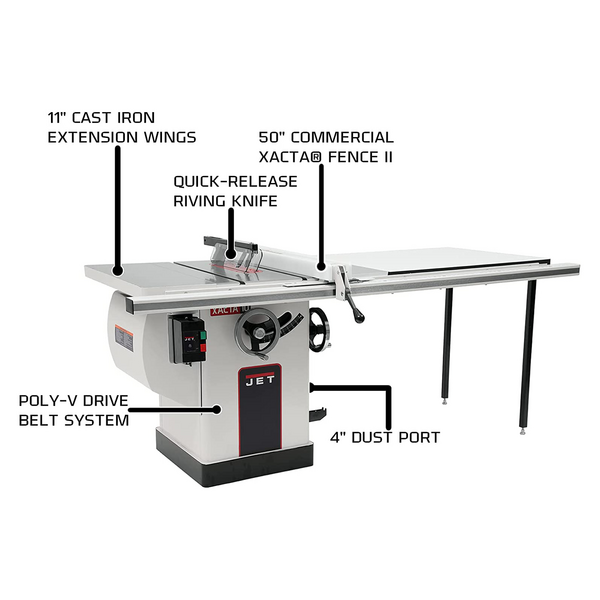

• EXCLUSIVE 50″ Commercial XACTA® Fence II with T-square design

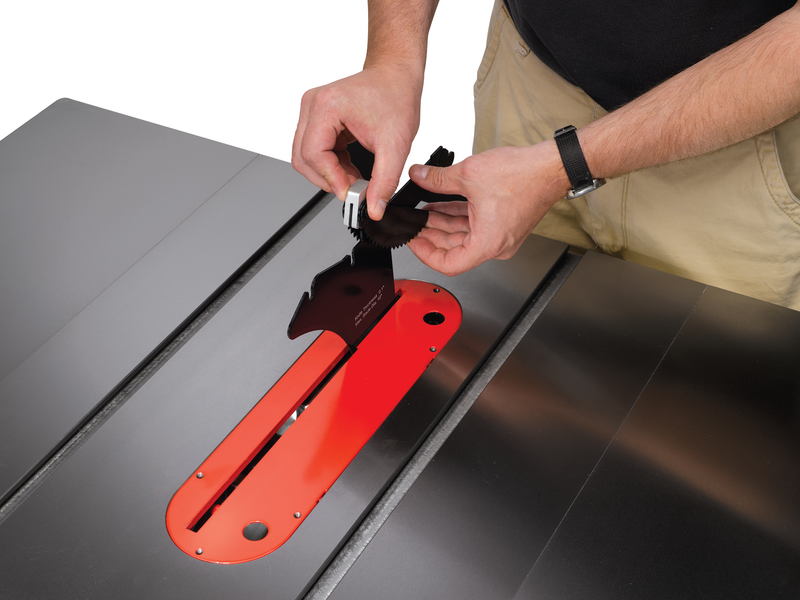

• Quick release riving knife greatly reduces binding/kickback risk

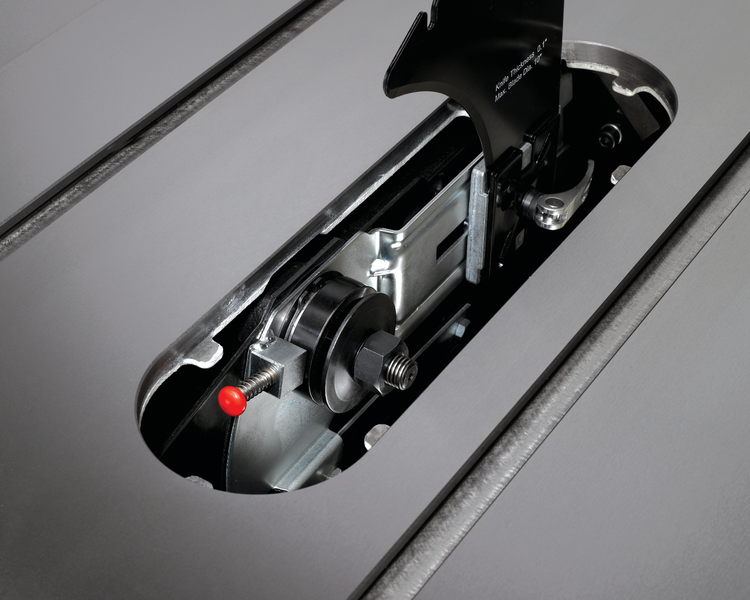

• Push button arbor lock for rapid blade change

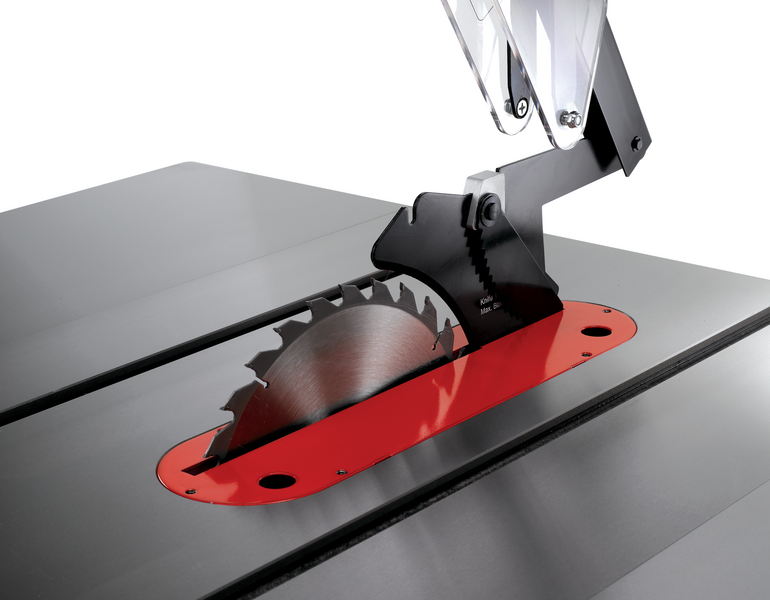

• Shrouded Blade increases dust collection efficiency
• Standard 11″ left and right cast iron extension wings provides the largest table surface in its class
• Poly-V drive belt system delivers quiet, efficient operation
• Rail-mounted magnetic switch is easy to reach and provides overload protection
• Enclosed cabinet with built-in sealed storage drawer
• Hinged motor cover on cabinet gives quick access to the motor and belts
• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters

Machine Specs

Style (Type) Cabinet
Blade Diameter (In.) 10
Arbor Diameter (In.) 5/8
Arbor Speed (RPM) 4300
Maximum Depth of Cut (In.) 3
Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
Maximum Rip Left of Blade (In.) 13
Maximum Rip Right of Blade (In.) 50
Table in Front of Saw Blade at Maximum Depth of Cut (In.) 10
Maximum Diameter of Dado (In.) 8
Maximum Width of Dado (In.) 13/16
Table Type Cast Iron
Table Size (L x W) (In.) 29 x 20
Table Size with Extension (L x W) (In.) 29 x 42
Miter Gauge Type Deluxe
Dust Collection Minimum CFM Required (CFM) 350
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 5
Motor Phase (PH) 1
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Motor Amps 18
Brand

Jet
Motor

5 HP
Phase

Single Phase
Voltage

220
