Bow Low Profile Clamping Kit

Bow Low Profile Clamping Kit

$179.99

In stock!

  • THE MOST VERSATILE LOW PROFILE CLAMPING KIT FOR MANY APPLICATIONS
  • WORKS ON CNCS, T-TRACK TABLES, DOG TABLES OR WOODEN WORKBENCHS OR ANY WOODEN SURFACE
  • STRONG SIDE WORKHOLDING LETS YOU WORK SURFACES AND EDGES WITHOUT OBSTRUCTION

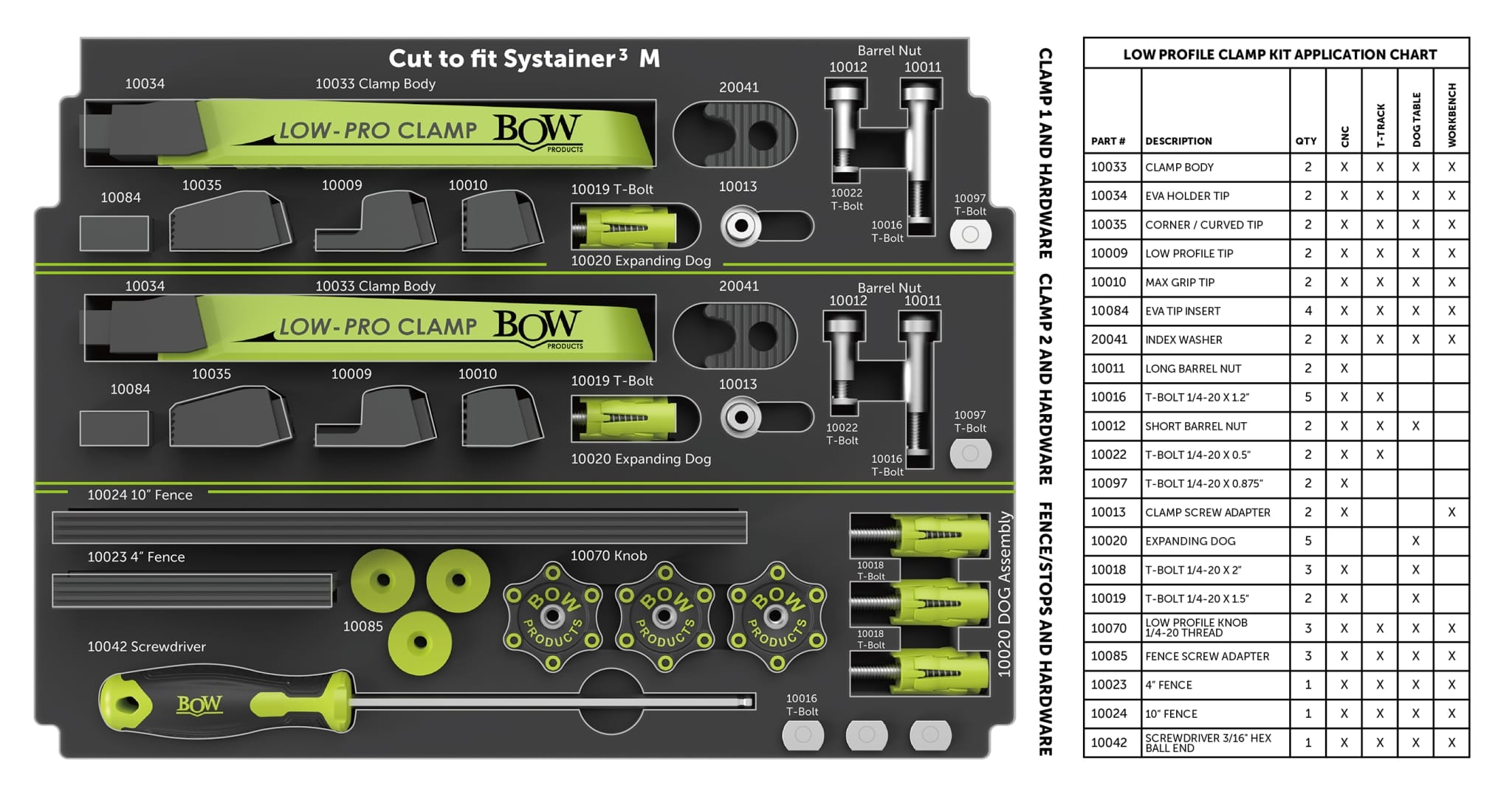

Low Profile Clamp Kit Features:

  • Versatile Edge Workholding
  • Works on CNC’s Track Tables, Dog Tables, and flat wooden surfaces
  • Strong hold while enabling unobstructed finishing of surfaces and edges.
  • Four Interchangeable Clamp Tips
  • Two clamps, two Fences and all the hardware you need for securement.
  • Downward clamping pressure to hold material down while the clamps are out the way.
  • Includes new patented Expandable Dogs
  • Clamps 360° positioning and 4” of positioning range

 Specifications:

  • Two Clamps and two Fence Stops
  • ¼ 20 T-Bolts, Barrel Nuts, and low-profile Bow knobs
  • Expandable Dogs that accommodate standard T-Bolts and Hex Bolts
  • Clamps 360° positioning and 4” of travel range
  • Four interchangeable Clamp Tips
  • Clamp Tips travel down a 15° slope over .45” horizontally and .12 vertically.
  • Special washers that accommodate use of #10 Countersink Wood Screws
  • T-Bolt Head dims: .446” by .625”
