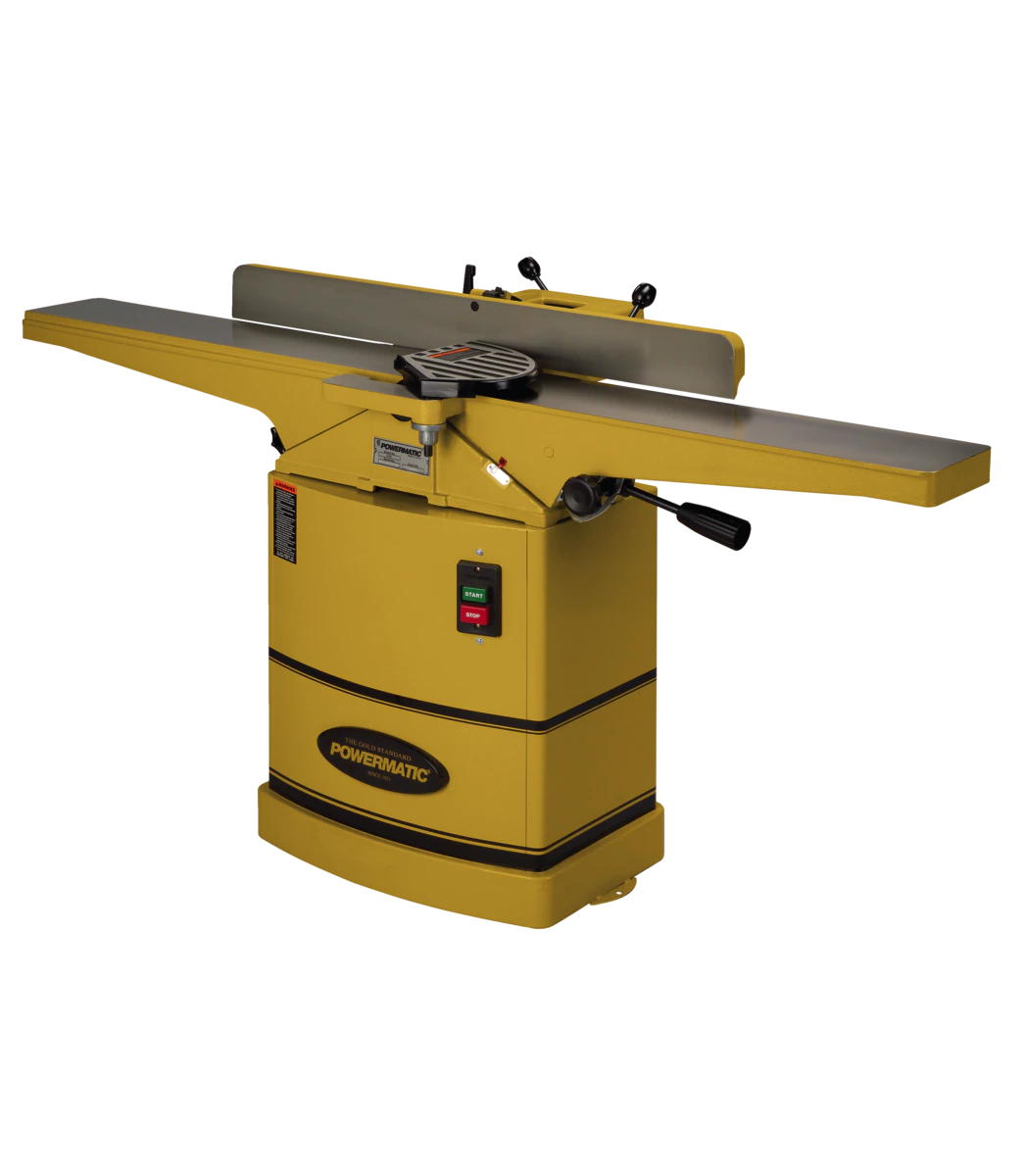

Powermatic 54HH 6″ Jointer with helical cutterhead

Powermatic 54HH 6″ Jointer with helical cutterhead

$2,299.99

In stock!

This 6″ Jointer features a helical cutterhead with 40 four-sided indexable carbide knife inserts – this design provides a superior finish and quieter operation compared to conventional cutterheads, and the inserts require no adjustment once they are installed. If a knife insert becomes nicked, simply rotate it for a fresh edge and continue working. Oversized infeed/outfeed tables are mounted on dovetailed ways. The fence is 38″ in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a 1 HP motor with a non-slip v-belt drive for maximum performance. The 4″ dust port offers easy connection to any dust collection system.

• Helical cutterhead with 40 four sided carbide inserts provides smoother, quieter cutting and finer finish than conventional systems
• 66″ long adjustable infeed and outfeed tables provide more working surface
• Fine/quick adjustment lever on infeed table for precision cuts
• Extra-long 38″ two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts
• Enlarged sheet metal stand provides a sturdy base
• Fence controls are center-mounted for convenience
• Push button switch is lockable to prevent accidental starting

Machine Specs

Type of Cutterhead Helical
Number of Knives 40 Four-Sided Carbide Helical Inserts
Cuts Per Minute NA
Cutterhead Diameter (In.) 2-1/2
Cutterhead Speed (RPM) 6,000
Cutting Capacity (W x D) (In.) 6 x 1/2
Table Size (L x W) (In.) 66 x 7-1/4
Table Height from Floor (In.) 31-1/2
Infeed Table Length (In.) 32-1/2
Outfeed Table Length (In.) 35-1/2
Rabbeting Capacity (In.) NA
Fence Size (L x H) (In.) 38 x 4-3/4
Fence Tilt (Deg.) 45 Forward, 45 Backward
Fence Positive Stops (Deg.) 45, 90, -45
Dust Collection Minimum CFM Required (CFM) 450
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 1
Motor Phase 1
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Motor Current (Amps) 13/6.5
Recommended Circuit Size (Amps.) 20/10

Brand

Powermatic

Phase

Single Phase

Voltage

115, 230
