Powermatic ArmorGlide 1285T Jointer, 3HP, 1PH, 230V Helical Head

Powermatic ArmorGlide 1285T Jointer, 3HP, 1PH, 230V Helical Head

$9,499.99

In stock!

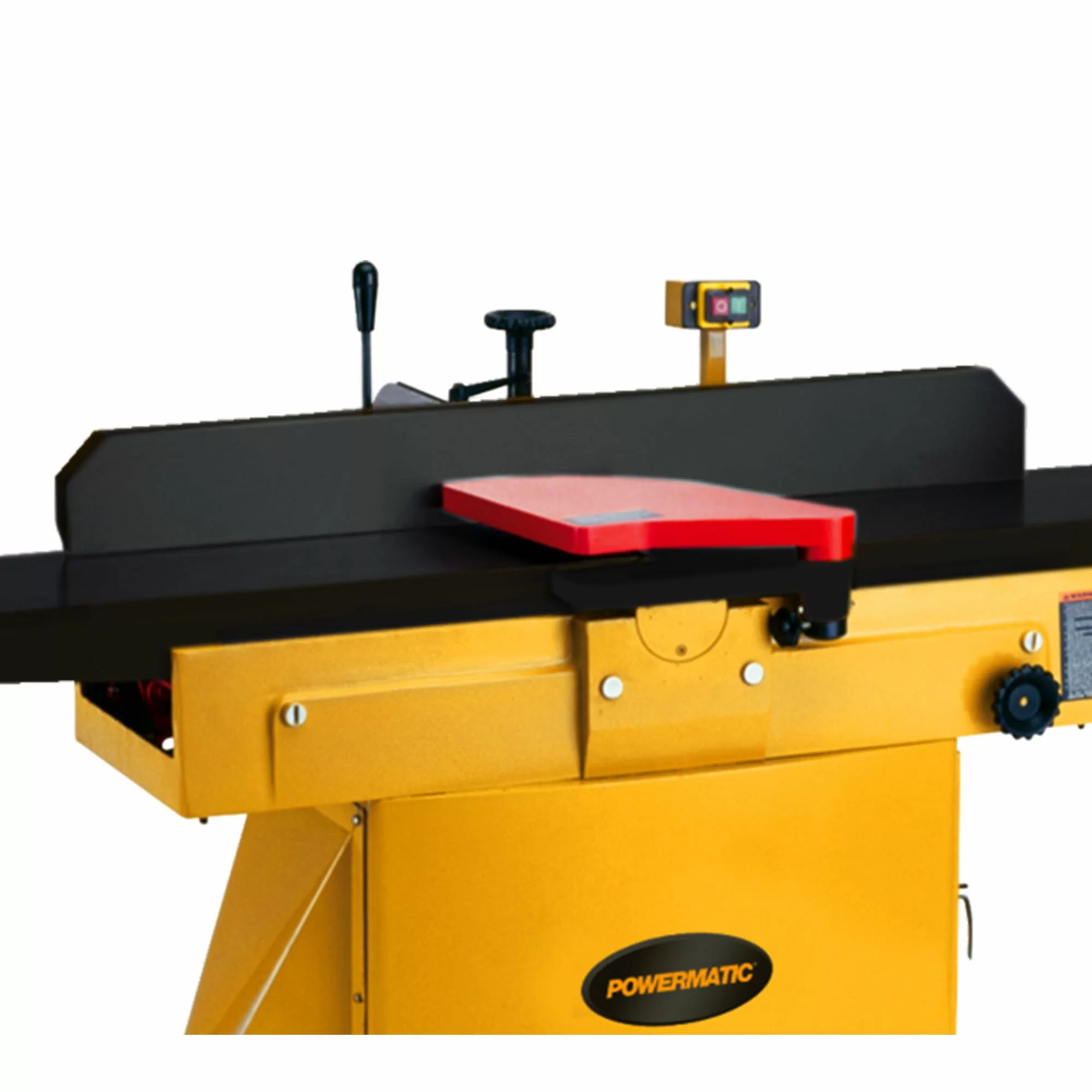

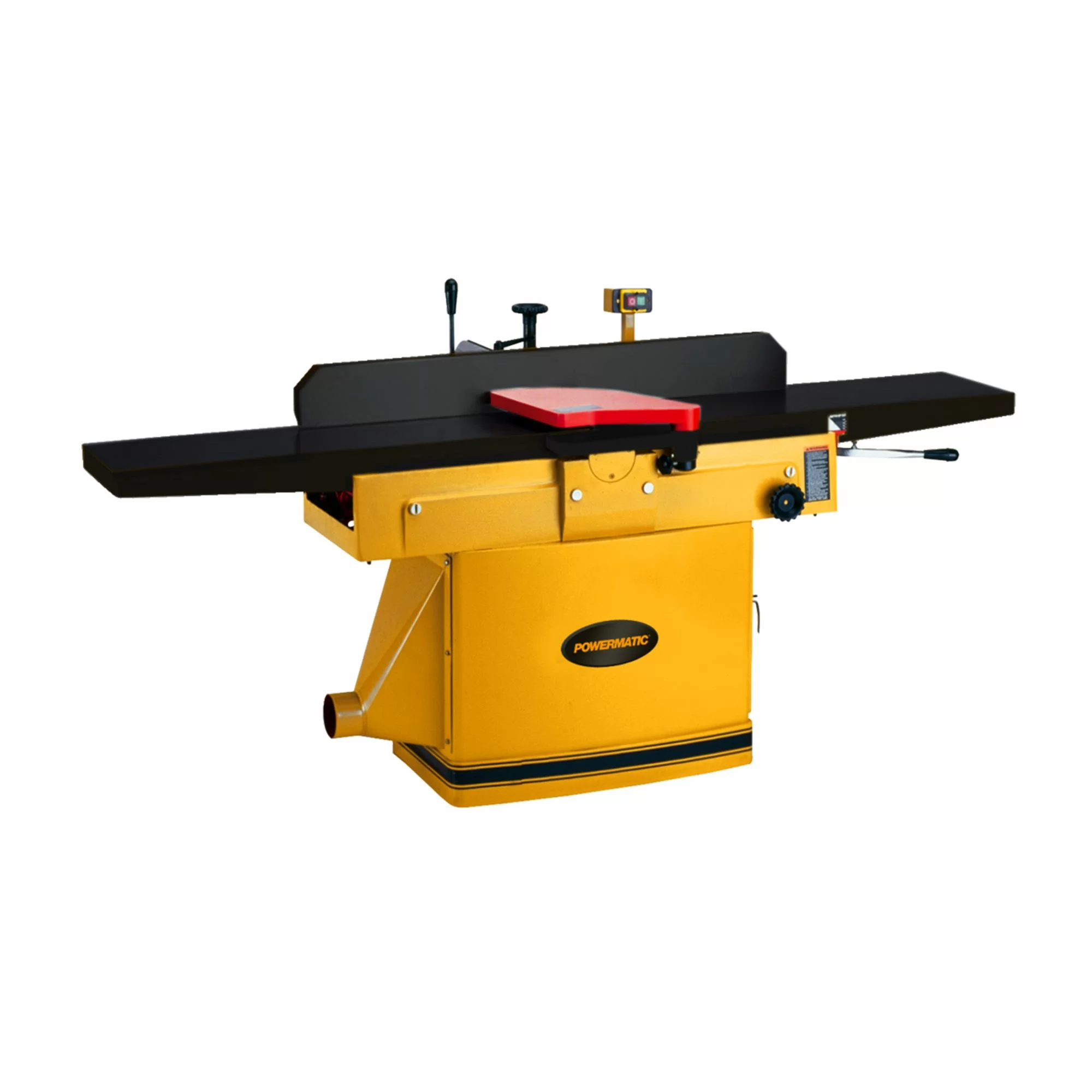

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic 1285T, 12-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. This model features a helical cutterhead.

Helical cutterhead with 42 two sided carbide inserts for fast knife changes with no adjustments and a quiet clean cut
• Large 12″ x 84″ precision ground cast iron table surface for heavy-duty work

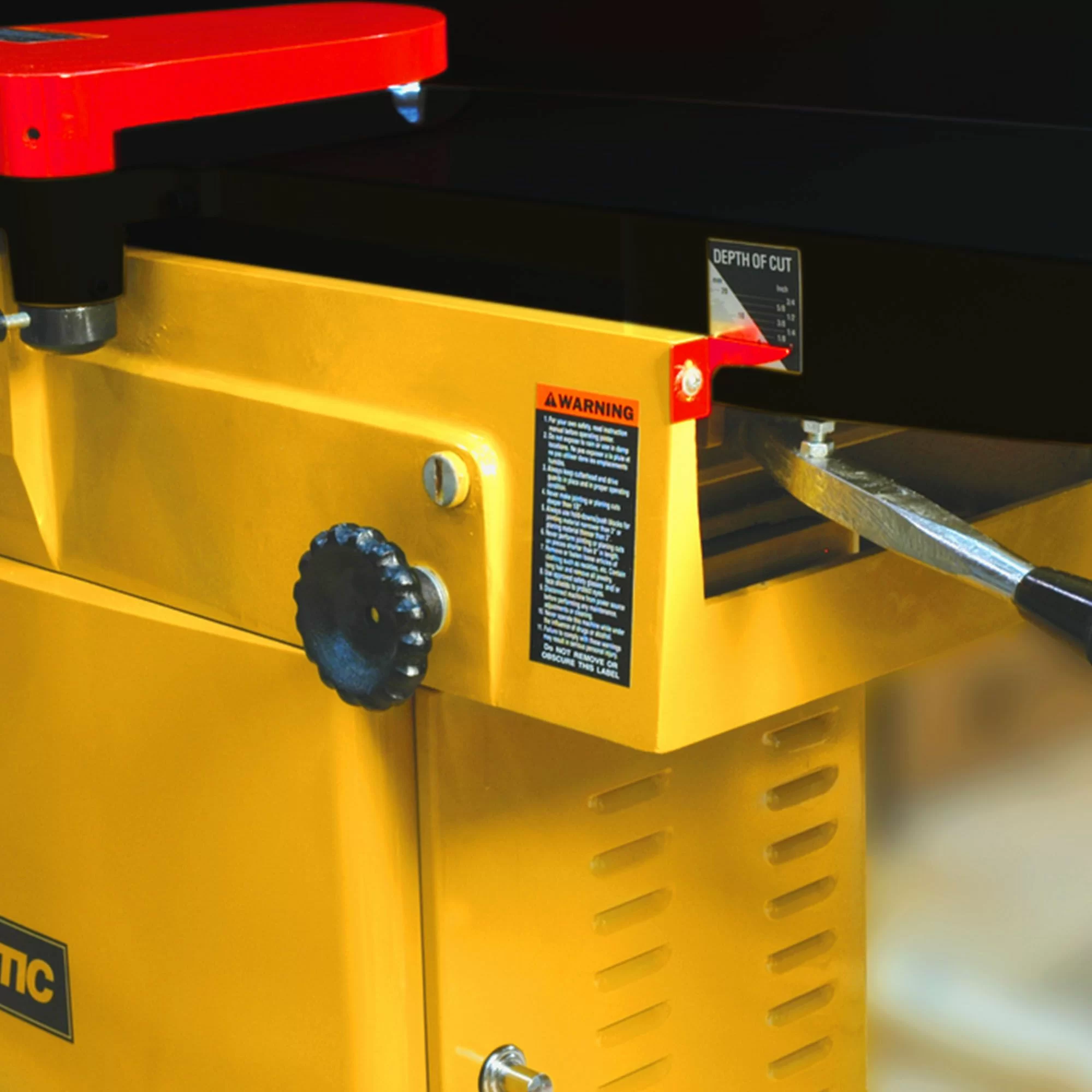

• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
• Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
• Table “lips” on both sides of cutterhead aid in noise reduction

Dimensions 89.5 × 29.5 × 40 in
Machine Specs

Cutterhead Speed (RPM) 5000.0000
Cutting Capacity (W x D) (In.) 11-3/4 x 3/4
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 4
Model Number 1285T
Motor Power (HP) 3
Motor Voltage (V.) 230
Number of Knives 44
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 30
Type of Cutterhead HELICAL

Voltage

230

Phase

Single Phase

Brand

Powermatic

Motor

3 HP
