- Powerful & Quiet: Provides a full 6.5″ of gantry clearance and a quiet yet powerful 3HP electro-spindle with integrated liquid cooling system and auto tool touch-off plate
- Interlocking Aluminum table: The most rigid, flat and stable surface around
- Structural Steel Frame: Every machine is built on this massive structure
- Cast Gantry Supports: Complex gravity castings virtually eliminate flex
- Proximity Sensors: These magnetic sensors act as your CNC’s eyes
- Ball Screws: Found on every Axiom Precision machine
- Onboard Cooling System: No buckets, no hoses, no aquarium pumps. No drama
- Linear Guideways: Minimal friction. Maximum accuracy
- Industrial DSP Controller: No complex software. The hand-held controller is powerful yet easy to use
- Cable Track Chain: Stress-free movement of hoses and cables
- High Torque Steppers & Servos: Fast, repeatable positioning of all axes
- Tool Touchoff Device: Measure your bit length quickly and accurately
- Industrial Data Connectors: No weak links

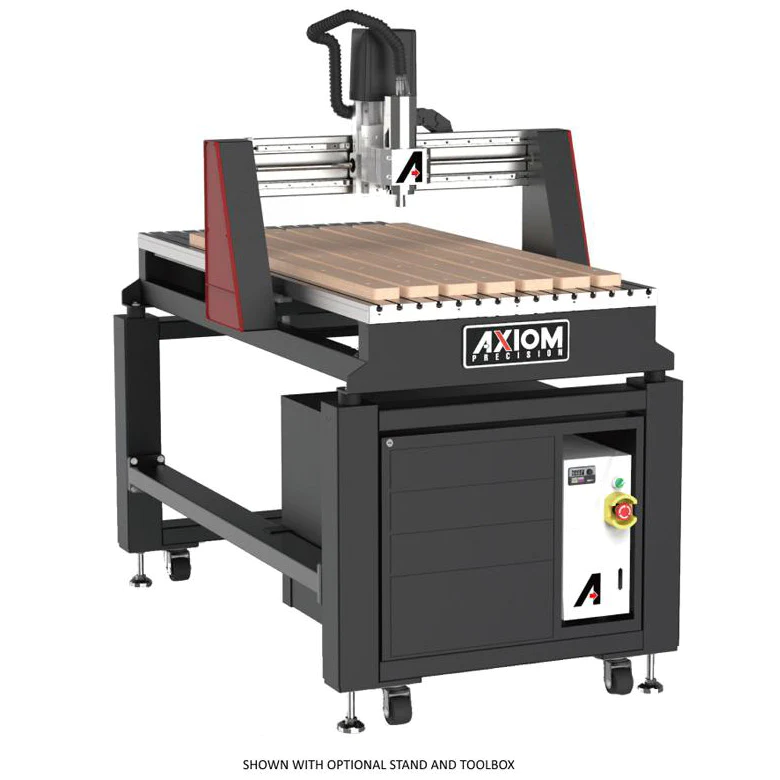

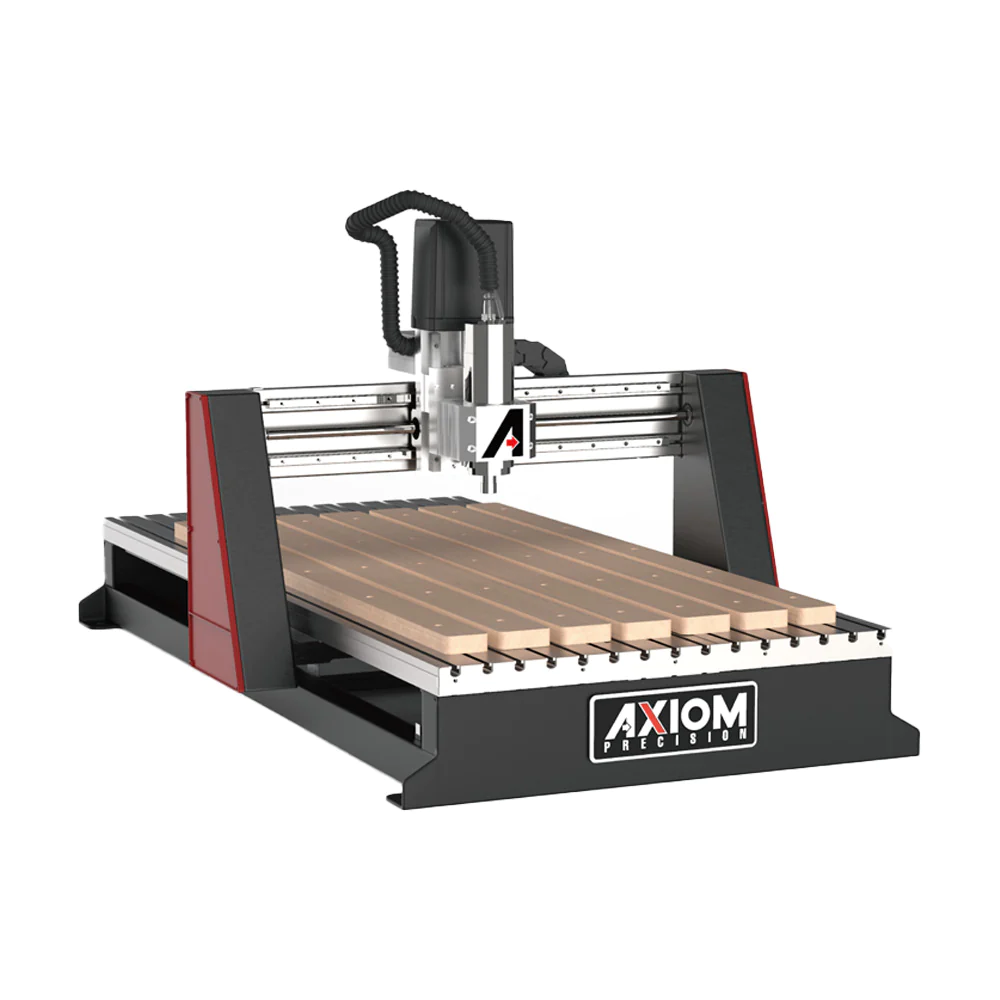

Axiom AR8Pro V5 2’x4′ CNC Router
Ships for $399
Axiom Precision offers a wide range of machines to address nearly any small-format CNC application. Each machine has been thoughtfully designed and rigorously tested in their Columbus, Ohio facility. These CNCs are engineered from the ground up like a large machine, but they will fit comfortably in your shop. Count on Axiom for accuracy, repeatability and speed without the use of any complex software.
The Axiom Pro Series are now stronger, faster, and easier to maintain than ever before. These CNC routers offer 4-axis capability, powerful electro spindle performance, and rotary machining capability in a compact industrial machine. They also feature increased holding torque with 48V stepper motors, an improved cooling system, and higher spindle performance thanks to an upgraded VFD.
Axiom Pro Series CNC’s come with integrated MDF spoil boards to provide the exacting precision you need as they can easily be milled flat for a true perpendicular surface to the spindle. It does not need to be attached to your computer to operate it. Simply transfer your file to the handheld controller via USB storage device. The handheld RichAuto B18 controller is a powerful, lightweight and easy to use controller with over a decade of proven results in demanding applications.
These CNCs come with lifetime technical support. Whether it’s a software or technical question, or just a challenging application, Axiom is there to help — regardless of how long you’ve owned your machine. No invoices, no expiration dates.
- Furniture Making: Whether you’re simply cutting out 2D furniture components, producing an accent inlay, or an ornate 3D wood appliqué, the applications for a CNC router within the woodworking trade are nearly countless.
- Fabrication: Need to produce a unique component? Wood, Aluminum, Brass, Composites, Phenolic, Foam, Plastic – If it can be cut with a spinning bit, Axiom Precision can produce it quickly and accurately.
- Sign Making: The ability to use a CNC machining center to carve letters and design elements into wood, plastic and aluminum has transformed the sign industry. Axiom Precision offers the machines, software, and accessories to produce nearly any sign you can imagine.
- 3D Carving: Axiom Precision’s capacity and accuracy make each machine a 3D carving powerhouse. From large three dimensional objects, to fine furniture accents, you’ll quickly produce accurate 3D carvings.
- Prototyping: Axiom Precision offers a small, yet accurate machine to produce one-off components and prototypes.
- Millwork: Reproducing historic architectural components is a snap with Axiom Precision. Brackets, capitals, arches, corbels, moldings and more can all be produced with ease.
X Axis Travel: 24'' (610mm)
